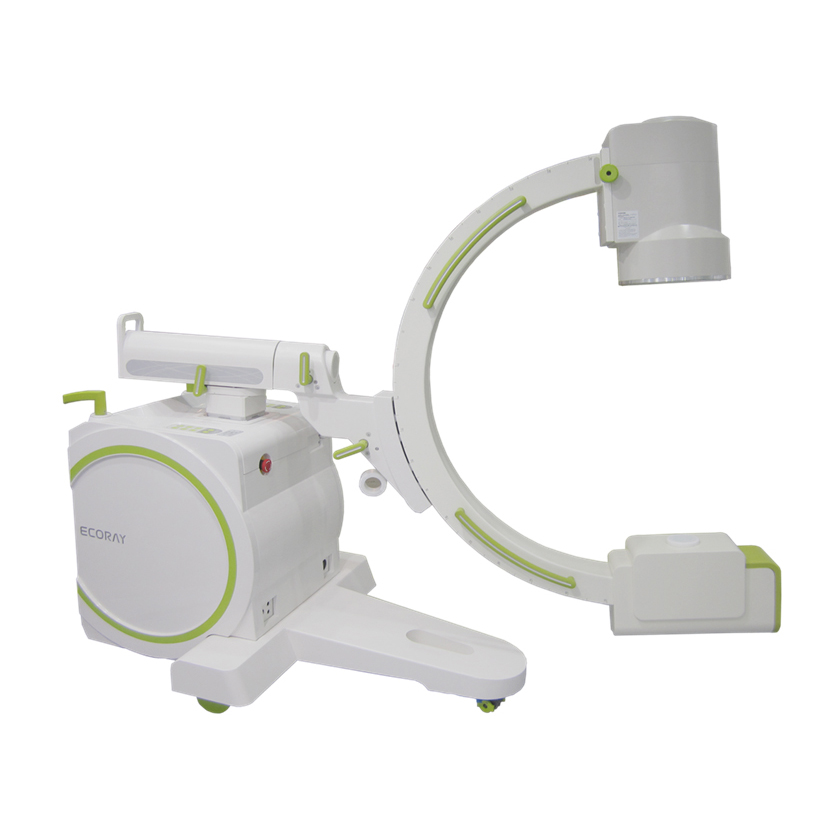

Description C-Arm mobile DR X-ray system Powerful solution for excellent mobile imaging CX-9 PLUS is the perfect choice for demanding procedures in neurosurgery, vascular procedures and cardiac applications. The powerful 12.5kW generator and rotating anode enable to produce high-quality images with minimal dose exposure. The CX-9 PLUS is the ECORAY’s product family. This surgical mobile C-arm was designed for orthopedic use to provide a variety of movement at limited space which can lead to the most convenient features in the surgery room. Call for price Description r Type High Frequency Inverter OP Console LCD Screen Mode Radiographic & Fluoroscopy Power Rating 12.5kW Kv Range Rad. 40-125kVp (1kV increment) Fluoro.40-120kVp (1kV increment) mAs Range Rad. : 0.32 to 300mAs mA Range Rad. Mode : 32, 50, 80, 100, 150mA Fluoro. Mode : Normal mode : 035-5.0mA Pulsed mode:1,2,4,8 pulse per second, Multi pulse & Snap FL:035-5.0mA Boost mode:6~20mA. Exposure time Rad. Mode:10ms to 5sec Fluoro. Mode:0 to 5.0minutes ABC Automatic Brightness Control Tube Type Rotating Anode Focal Size Small:0.3mm, Large:0.6mm Anode target 10° Target Angle Heat Capacity 200,000HU Image Intensifier(9 inch) Type Triple Field:9˝, 6˝, 4.5˝ Limiting resolution 52LP/cm Grid 103 lines/Inch, Ratio:8:1, FD:1000mm C-arm Movement & Dimension Free space in arc 782mm SID 1,000mm Depth of arc 680mm Orbital rotation 135°(45~90°) Horizontal travel 200mm Vertical travel 500mm Panning motion ±12.5° Pivot rotation ±180° CCD Digital Camera Sensor Interline transfer CCD CCD format 1/2Inch, 5.5µm x 5.5µm Pixel size Pixel Number 1024(H) x 1024(V) AD Converter 14 Bit Recursive filter Factors 2, 4, 8, 16 “Auto Motion Detection” LIH Stores the last image Frame rate 30 FPS DIS(Digital Imaging System) Data acquisition Image Size:1024 x1024 Pixel depth :14bit Automatic image capture Dual monitor display & operation Image Processing Window Level(contrast adjustment) Real time & Post-Processing Pan & Zoom Control Image flip ( Horizontal & Vertical) Image rotation (360°) Edge Enhancement (sharpness) Multiple display: up to 4x4 matrix format Image Management Create a patient file & database DICOM send Networking to PACS Image Storage Convertible to a general format: BMP Benefits Superb maneuverability, intuitive interface, and advanced fluoroscopic features optimize the most efficient workflow in the operating room. Our mobile C-arms, with 9” image intensifier, provide quality images at low X-ray dose. The machine is easy to steer, position and operate. Also, it has superb heat management capabilities. Rotating anode power and pulsed exposure showcase are innovative as well. - Optimized clinical workflow and connectivity - High Quality imaging - Powerful performance of 12.5 kW - User-friendly operation - Clinical versatility - Dose Saving Advanced image management by ECOVIEW™ - Compact design with integrated triple field I.I - High resolution CCD camera (1K X 1K) - Various clinical applications by workstation software - Powerful 12.5KW HFG (300KHZ) with high performance - Rotating anode tube for longer fluoro time with durability - Connectivity to PACS
